Screens

A screen is the root of an interface. It is an entity with a screen component, and the elements below it are laid out in its space. The screen decides whether the interface is drawn over the camera's view or placed in the scene, what its units measure, and how it grows and shrinks with the canvas.

Screen Space and World Space​

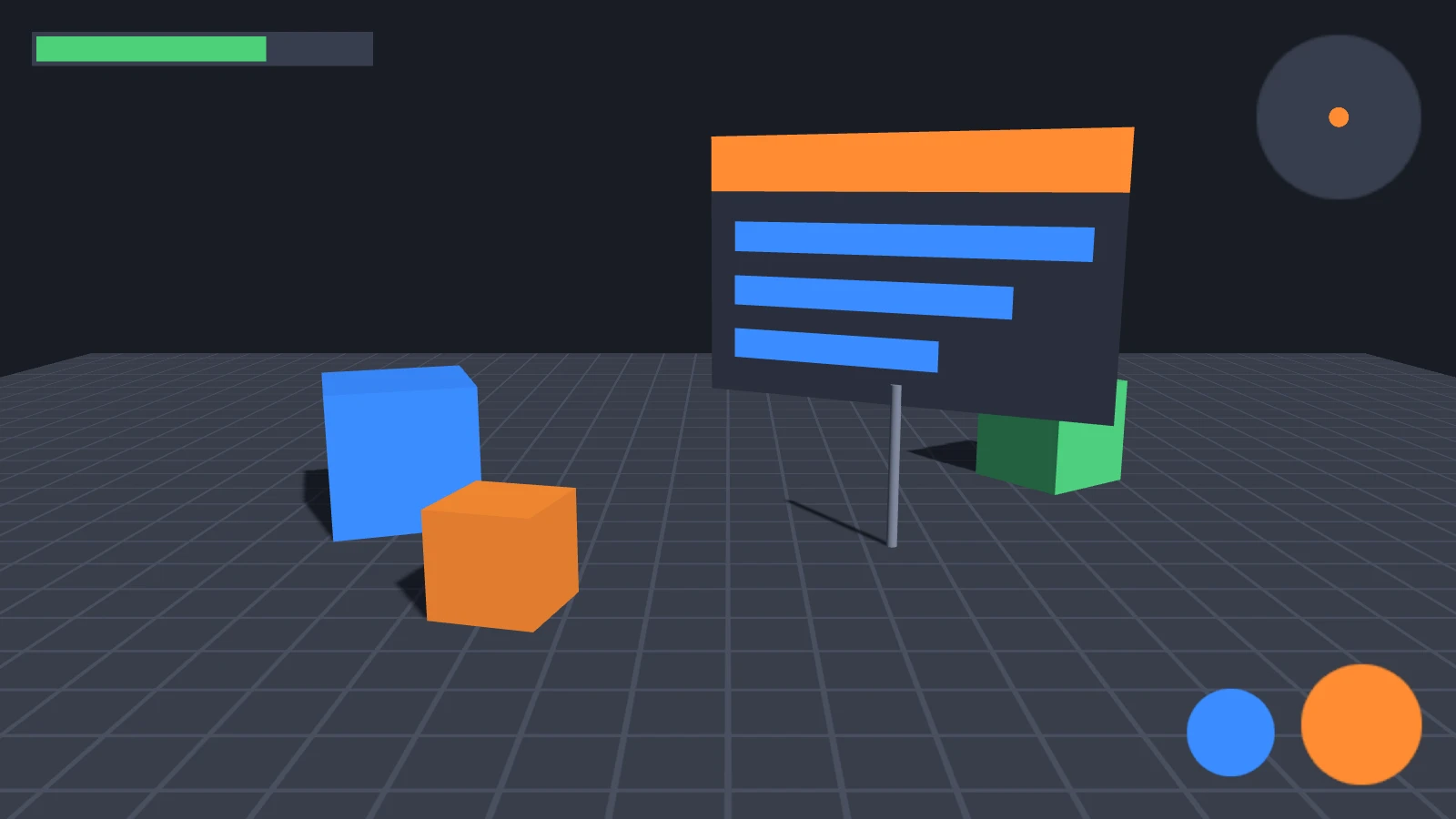

A 3D scene with a panel standing in it, seen in perspective, and a flat HUD with a bar and buttons drawn over the view

A screen-space screen is drawn over the camera's view, wherever the camera is, and is always the size of the canvas. Use it for HUDs, menus and any other interface that belongs to the screen rather than the world.

A world-space screen is placed in the scene by its entity's transform and drawn with the rest of the scene: a sign on a wall, a panel above a machine or a menu in XR. Its size is its resolution, in the entity's local units, centered on the entity. See World-Space UI.

// Drawn over the camera's view, the size of the canvas
const hud = new pc.Entity('hud');
hud.addComponent('screen', {
    screenSpace: true,
    scaleMode: pc.SCALEMODE_BLEND,
    referenceResolution: [1280, 720]
});
app.root.addChild(hud);

// Placed in the scene: 640 × 320 units, scaled to 6.4 × 3.2 meters
const sign = new pc.Entity('sign');
sign.addComponent('screen', {
    screenSpace: false,
    resolution: [640, 320]
});
sign.setLocalScale(0.01, 0.01, 0.01);
sign.setPosition(0, 2, -5);
app.root.addChild(sign);

Both kinds hold the same elements, laid out in the same way.

Units and Resolution​

Elements are positioned and sized in screen units, with the y axis pointing up. What a unit measures depends on the screen:

ScreenResolutionOne unit is
Screen space, Scale Mode NoneThe size of the canvas's drawing buffer, updated whenever the canvas is resizedOne pixel of the drawing buffer
Screen space, Scale Mode BlendThe samescale pixels of the drawing buffer. See Scaling with Blend
World spaceThe resolution you set, 640 × 320 by defaultOne unit of the entity's local space

A screen-space screen sets its own resolution, so writing to resolution has no effect on it. When the canvas changes size, elements anchored to the screen's edges and corners move with them.

Scaling with Blend​

With Scale Mode set to None, an interface is built in pixels and keeps its size in pixels. An interface that fits the canvas it was designed for looks small on a larger canvas, and runs off the edges of a smaller one. With Blend, you design the interface at a reference resolution, and the screen scales it to the canvas it is shown on, so it keeps its proportions everywhere:

The same interface on a small and a large canvas. With Scale Mode None, in the top row, it overflows the small canvas and looks small on the large one. With Blend, in the bottom row, it is scaled to fit both

const screen = new pc.Entity('screen');
screen.addComponent('screen', {
    screenSpace: true,
    scaleMode: pc.SCALEMODE_BLEND,
    referenceResolution: [1280, 720],
    scaleBlend: 0.5
});
app.root.addChild(screen);

To change the reference resolution later, assign a new pc.Vec2 to referenceResolution.

The screen compares the canvas with the reference resolution one axis at a time, and Scale Blend weights the two axes:

scale = (width / reference width) ^ (1 - Scale Blend) × (height / reference height) ^ Scale Blend

With a reference resolution of 1280 × 720, a 1920 × 1080 canvas scales the interface by 1.5 and a 640 × 360 canvas by 0.5, whatever the Scale Blend, because both canvases have the same shape as the reference. Scale Blend only matters when the canvas has a different shape. The screen's scale property holds the current factor.

Scale Mode applies only to screen-space screens. A world-space screen is always unscaled, so size it with its entity's scale instead.

Choosing the Scale Blend​

Scale Blend decides which dimension of the canvas the interface follows:

Scale BlendThe interface scales withSuits
0The width of the canvasPortrait layouts, and interfaces that must always fit across the canvas
0.5The width and the height equallyInterfaces shown in both orientations. Turning a phone on its side does not change the scale
1The height of the canvasLandscape games, whose HUD must fit from top to bottom

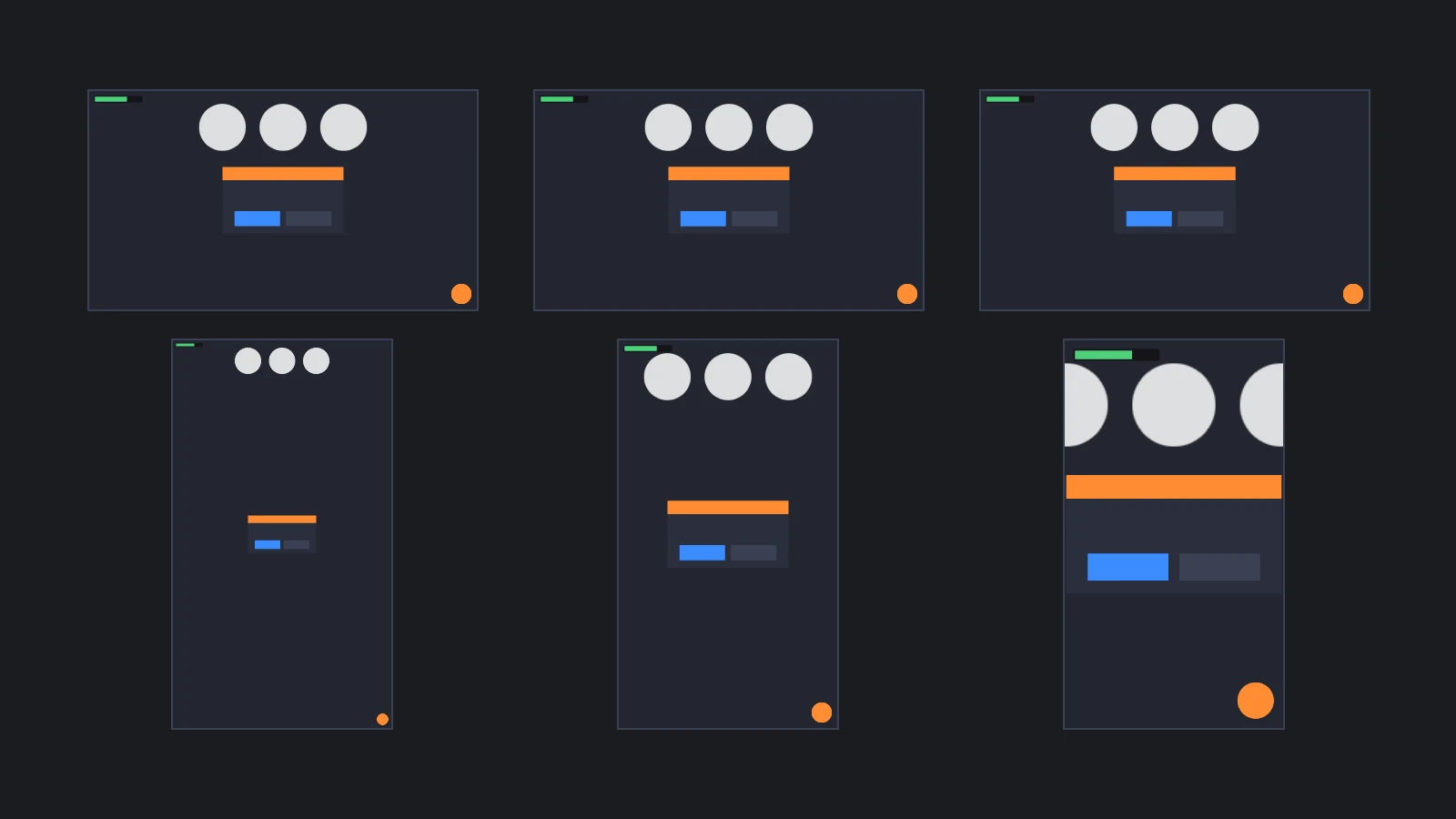

A landscape and a portrait canvas for each Scale Blend: 0 on the left, 0.5 in the middle and 1 on the right. In portrait, 0 makes the interface small enough to fit the width, 0.5 keeps it the size it has in landscape, and 1 makes it too wide to fit

At 0.5, the scale depends only on the area of the canvas, so turning a phone on its side keeps the interface the same size, but a layout designed for a landscape reference resolution can be too wide for a portrait canvas. To keep the whole reference area on screen, whatever the shape of the canvas, follow whichever axis has less room and check again whenever the canvas changes size:

// Follow whichever axis has less room, so the whole reference area stays on screen
const fitReference = () => {
    const { resolution, referenceResolution } = screen.screen;
    const wider = resolution.x / referenceResolution.x > resolution.y / referenceResolution.y;
    screen.screen.scaleBlend = wider ? 1 : 0;
};
fitReference();
app.graphicsDevice.on('resizecanvas', fitReference);
Screen Scaling

Pixel Ratio​

On a high-density display, the canvas's drawing buffer can have more pixels than the canvas has CSS pixels on the page. That makes rendering sharper, and costs more to draw. The graphics device's maxPixelRatio caps the ratio between the two, and each surface sets it differently:

SurfaceDrawing buffer, by default
EngineThe canvas's CSS size, as maxPixelRatio is 1. Set app.graphicsDevice.maxPixelRatio to window.devicePixelRatio for full resolution
EditorThe CSS size, or the display's full pixel ratio when Device Pixel Ratio is enabled in the Rendering settings
ReactThe CSS size. Set maxPixelRatio on the graphics device of the application that useApp() returns
Web ComponentsThe display's full pixel ratio. Cap it with the max-pixel-ratio attribute of <pc-app>

The pixel ratio affects the two scale modes differently:

  • Blend: the screen's resolution and its scale grow together, so a higher pixel ratio leaves the interface the same size on the page and only makes it sharper.
  • None: one unit is one pixel of the drawing buffer, so a higher pixel ratio makes the interface smaller. At a pixel ratio of 2, a 100 unit button is 50 CSS pixels wide.

Pixel-Perfect Images​

With Scale Mode None, an image element the size of its texture draws each texel as one pixel of the drawing buffer, which keeps pixel art and small icons crisp. Keep such elements on whole pixels: anchor them to a corner rather than a center, which falls between two pixels on a canvas with an odd width or height, and avoid sizes that put an edge halfway between pixels, such as an odd width with a centered pivot. To draw pixel art at two or three times its size without blurring, set the texture's minFilter and magFilter to pc.FILTER_NEAREST.

Responsive Layouts​

A screen-space interface follows the canvas, and the canvas is sized outside the screen:

SurfaceThe canvas is sized by
EngineThe application's fill mode. pc.FILLMODE_FILL_WINDOW fills the window, pc.FILLMODE_KEEP_ASPECT fills as much of it as the canvas's aspect ratio allows, and pc.FILLMODE_NONE leaves the size to your CSS. Call app.resizeCanvas() when the window changes size
EditorFill Mode and Resolution Mode in the Rendering settings
ReactThe element that contains <Application>, as the canvas fills it by default
Web ComponentsThe page's CSS, which sizes <pc-app> as it would a <video> element. The canvas always fills it

With a canvas that keeps its aspect ratio, a Blend-scaled interface looks the same in every window, only larger or smaller. With a canvas that fills a window or a phone screen, the layout has to adapt:

  • Anchor each element to the corner or edge it belongs to, so that it follows that edge on a wider or taller canvas, and use split anchors for bars and panels that should stretch. See Elements.
  • Keep centered content within the smallest canvas you support, or keep the whole reference area on screen as in Choosing the Scale Blend.
  • On phones, keep essential elements inside the safe area.
  • Let text wrap or shrink to fit its element. See Text Elements.
  • Test at the smallest and largest canvases you support, in both orientations, and at pixel ratios of 1 and 2 or more.

Multiple Screens​

An application can have several screens, for example a HUD, a pause menu and a sign in the world, and each lays out its own elements. When screens overlap, the one with the higher priority, from 0 to 127, is drawn on top and tested first for input. See Draw Order and Performance.

Showing and Hiding​

Disable a screen's entity to hide its whole interface, and enable it to show the interface again. Elements on a disabled screen receive no input. Disabling only the screen component does not hide anything.

pauseMenu.enabled = true;

In React, render the screen's <Entity> only while it should be shown: <Entity> does not apply an enabled prop. In Web Components, set the enabled attribute of its <pc-entity> to false.
